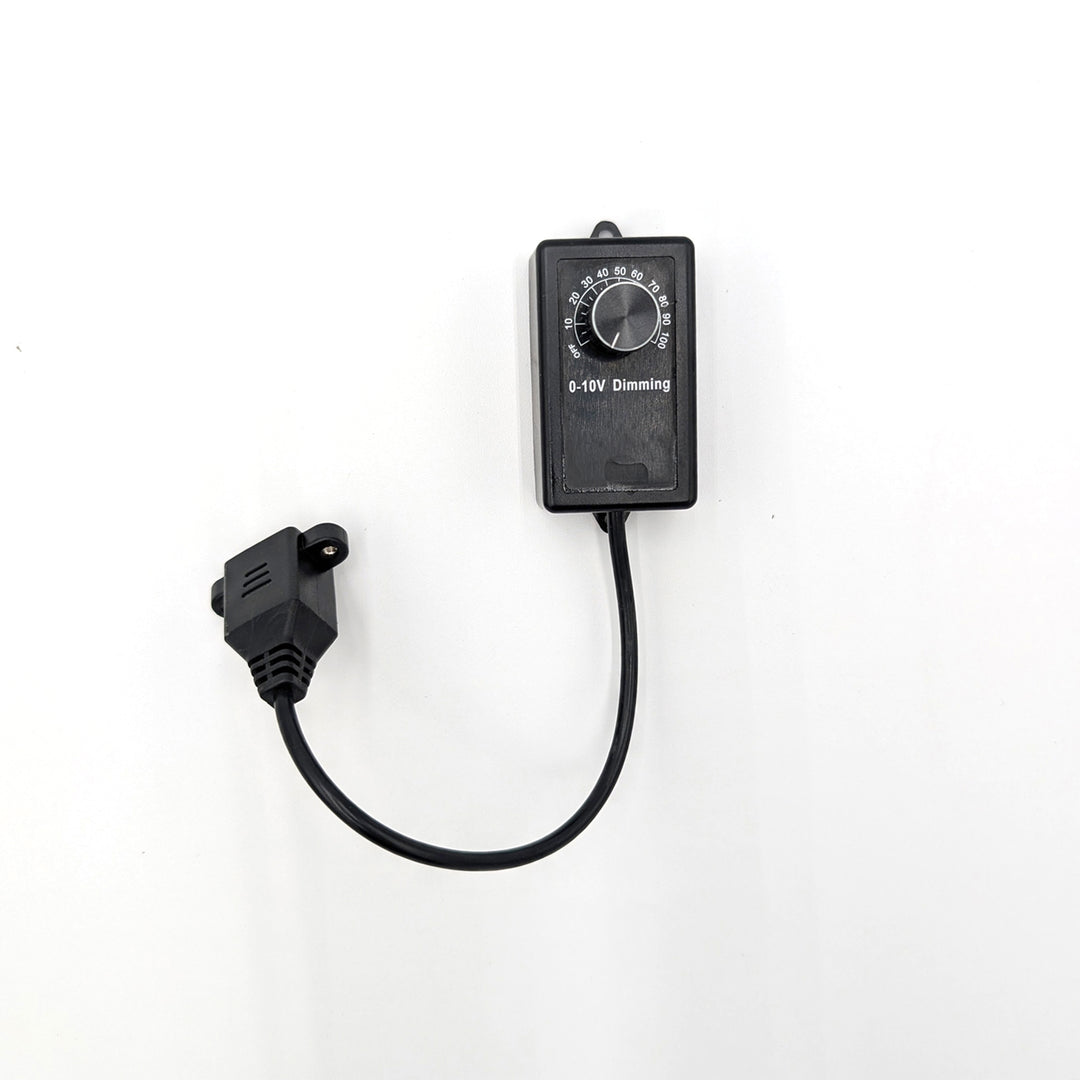

0-10V Dim Control by Digi-Lumen — Plug-In LED Grow Light Dimmer with 3m Cable

0-10V Dim Control by Digi-Lumen — Plug-In LED Grow Light Dimmer with 3m Cable

DL-ACC-DIM-0-10V

$34.95
/
Shipping calculated at checkout.
  • Handpicked by growers
  • Ships today
  • Real advice, real people
  • 5,000+ high yielding customers
  • 30-day returns*
  • Free shipping over $499*
  • Low stock - 3 items left
  • Backordered, shipping soon

Pairs well with

The Digi-Lumen 0-10V Dim Control is an external dimmer for the Extreme series LED grow lights. Plug it into the fixture's 0–10V dimming port, run the 3-metre cable to wherever you can reach it, and turn one dial to set light intensity — no climbing up to the fixture, no disturbing the canopy. Keep seedlings and clones on low, lift it through veg, push to full power in flower. Simple analogue control, nothing to program.

Dim From Outside the Tent Three metres of cable puts the dial at eye level or outside the tent, so you adjust intensity without reaching over plants or unhooking the fixture.
Match Light to the Stage Run seedlings and clones low, step up through veg and go full output in flower. Dimming also trims heat and power draw when you don't need everything the fixture has.
Plug-and-Play for Extreme LEDs Made for Digi-Lumen Extreme fixtures with 0–10V control ports — the 400W, 720W, 1000W and the rest of the range.
Simple Analogue Control Industry-standard 0–10V signal with smooth, continuous adjustment. No app, no firmware, no pairing — turn the dial and the light follows.

Specifications
Control signal: 0–10V analogue
Adjustment: Smooth, continuous dimming
Cable length: 3 m
Connects to: Fixture 0–10V dimming port (RJ12 on Extreme fixtures)
Compatible fixtures: Digi-Lumen Extreme 400W, 720W, 1000W and other Extreme fixtures with 0–10V control ports; other 0–10V capable horticultural LEDs
Type: External plug-in dimmer, single dial
Timer / scheduling: None — manual dimming only
Manufacturer code: DLXDC
Grower Tip — Getting the Most from a Dimmer
  • Seedlings and fresh clones don't want full power. Start low and lift the dial as they root in and harden off.
  • Dimming cuts heat as well as light. If you're dimming to manage canopy temperature, check your hanging height too — a dimmed fixture hung too high wastes the light you're paying for.
  • Mount the dial where you can see the canopy while you turn it, and note your setting for each stage so the next run is repeatable.
  • Fixture not responding? Check the plug is fully seated and look at the fixture's onboard dimmer setting — the fixture manual covers how the two controls work together.

How to Set It Up
1
Switch the fixture off at the wall before you plug anything in.
2
Plug the dim control's cable into the 0–10V dimming port on your Extreme fixture.
3
Run the 3 m cable through a tent cable port or down to eye level, and position the dial where you can reach it and see the canopy.
4
Power the fixture back on and turn the dial to your starting intensity — low for seedlings and clones, higher through veg, full in flower.
5
Adjust as the crop develops. A mains timer still runs your photoperiod as normal — the dim control only sets intensity.

Pairs Well With

Frequently Asked Questions
Will it work with my Digi-Lumen Extreme light?

Yes. It's built as a plug-in accessory for the Extreme series — the 400W, 720W, 1000W and other Extreme fixtures with 0–10V control ports. Plug it into the fixture's dimming port and turn the dial.

My light already has a dimmer on it. Do I need this?

No — Extreme fixtures dim from their onboard control. This is for growers who want the dial within reach: at eye level, outside the tent or away from a hot canopy, so you can adjust without reaching up to the fixture every time.

Does it have a timer or schedule?

No. It's a manual analogue dimmer — intensity only. Keep running your photoperiod from a mains timer, or step up to the Digi-Lumen Extreme LED Controller for a built-in timer and clock with dimming across up to 50 fixtures.

Can one dim control run several lights?

Yes. The 0–10V signal passes from fixture to fixture through the Extreme range's RJ12 ports, so a daisy-chained row can follow one dial. What it won't do is timers or schedules — for room-wide dimming on a clock, the Extreme LED Controller runs up to 50 fixtures.

Will it dim LED grow lights from other brands?

Possibly. It's a standard 0–10V analogue signal, so a fixture with a 0–10V dimming input and a matching plug will take it — but connector types differ between brands. Check your fixture's dimming port before ordering, or ask us and we'll confirm.

Does it work with HPS or MH lights?

No. It's a 0–10V LED dimmer. HID lamps dim through their ballast, not a 0–10V input — a dimmable digital ballast is the tool for that job.

Take the Dial Off the Fixture

Set light intensity from where you're standing — plug in, run the cable, turn the dial.
